The new TENADO METAL 3D

From staircases to complex steel structures: With the new TENADO METALL 3D, you can work efficiently, easily, and even faster thanks to the CAD core of Autodesk Inventor. TENADO METALL 3D is perfectly tailored to the needs of the industry and equipped with intelligent design aids, point cloud functionality, evaluations, and generators for stairs, railings, and much more.

Secure your place in the live webinar now
Book a live presentation
Purchase

Efficiently designed, professionally implemented – the new TENADO METALL 3D

Autodesk Inventor’s fast CAD core guarantees impressive performance, while TENADO’s industry-specific metal add-on provides intuitive drawing tools. This allows you to easily, efficiently, and highly professionally design exactly what your customers want.  
Practical generators reduce your design effort: Fences, railings, or stairs can be created in no time. The corresponding reports provide parts and sawing lists. Save time and work with even greater precision thanks to the new point cloud function, and meet the requirements of municipal tenders, because with TENADO METALL 3D, you now also have a Revit connection, allowing you to work in a BIM-compliant manner.  
Get to know the new TENADO METALL 3D, the strong partner for metalworking distributors.  Register now for the kick-off webinar on July 3rd!
Logo for TENADO METALL 3D, featuring the tagline Powered with Autodesk Technology and the from revalize branding.
Two people look at a computer monitor displaying a 3D design in CAD software, discussing the structural model on the screen in an office setting.

Powerful tools for impressive results

With TENADO METALL 3D you have a comprehensive 3D CAD software at your fingertips, including all common functions and much more: 3D modeling, sheet metal processing, 2D derivations, dimensioning, parametrics with rule creation thanks to iLogic and rendering.

From point to image 

Bring the surroundings of your design or already completed substructures into your software with millimeter precision. Use TENADO’s partner Flexijet or other 3D lasers to display all dimensions and objects with point clouds in TENADO METALL 3D.   
Purchase
3D modeling software interface displaying a partially completed staircase and landing with railings, a door, and options window open for profile settings.

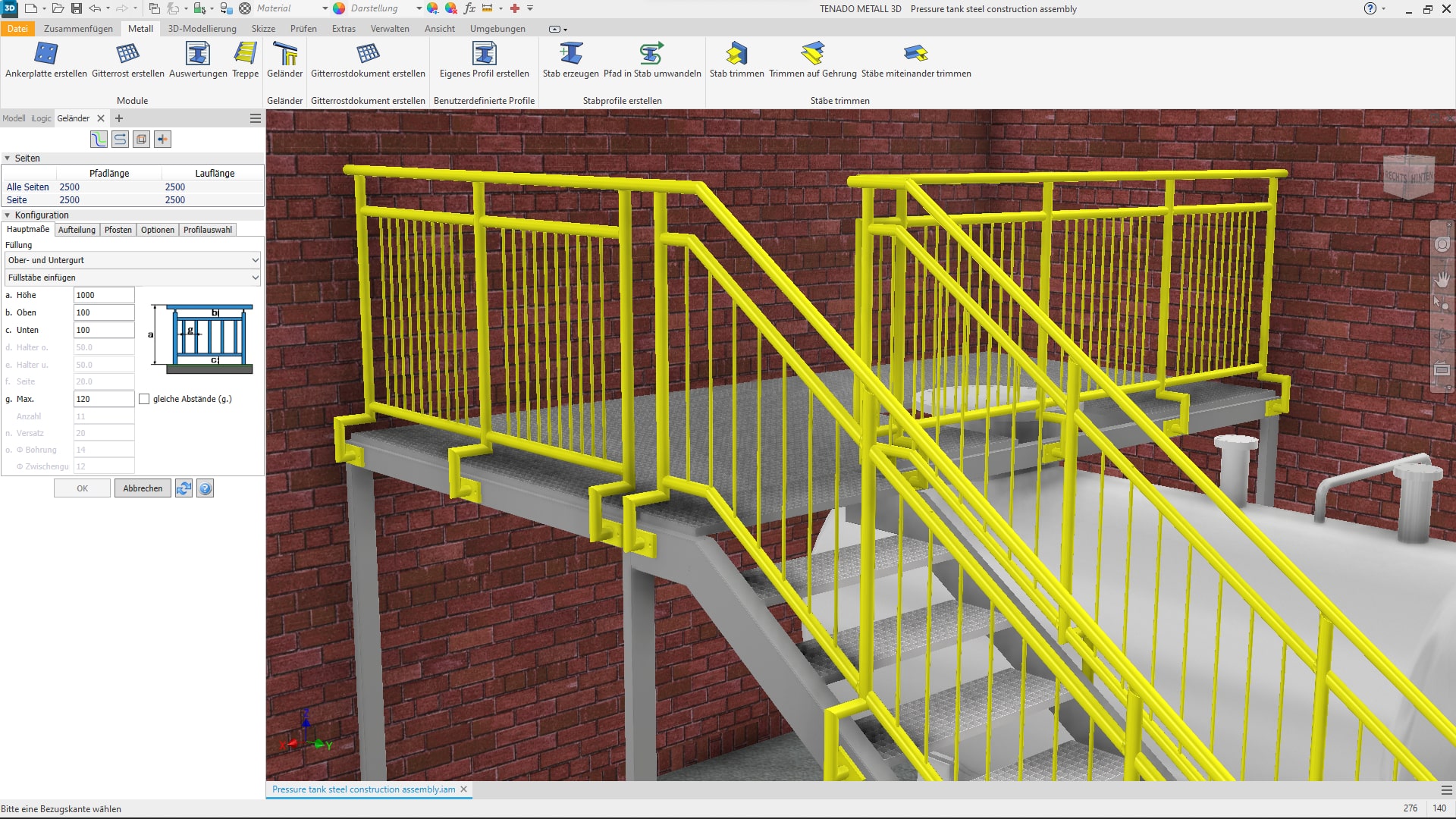

3D model of a metal staircase with bright yellow handrails and guardrails, set against a red brick wall, displayed in engineering design software.

Stairs and railings – Let us draw 

With the integrated generators in TENADO METALL 3D, you can create stairs and railings precisely and quickly. Enter dimensions, select the material and construction type, and the system automatically creates a 3D model. Individual components can be customized, and even complex requirements or special designs can be quickly implemented.

Next generation sheet metal processing

Punching, bending, unfolding, creating contour rolls – with TENADO METALL 3D, you’re prepared for every challenge. In the sheet metal processing tool, you can design parametrically, control material behavior, bend, cut, create bends, or mark parts – the dynamic 3D preview shows you every progress in real time.

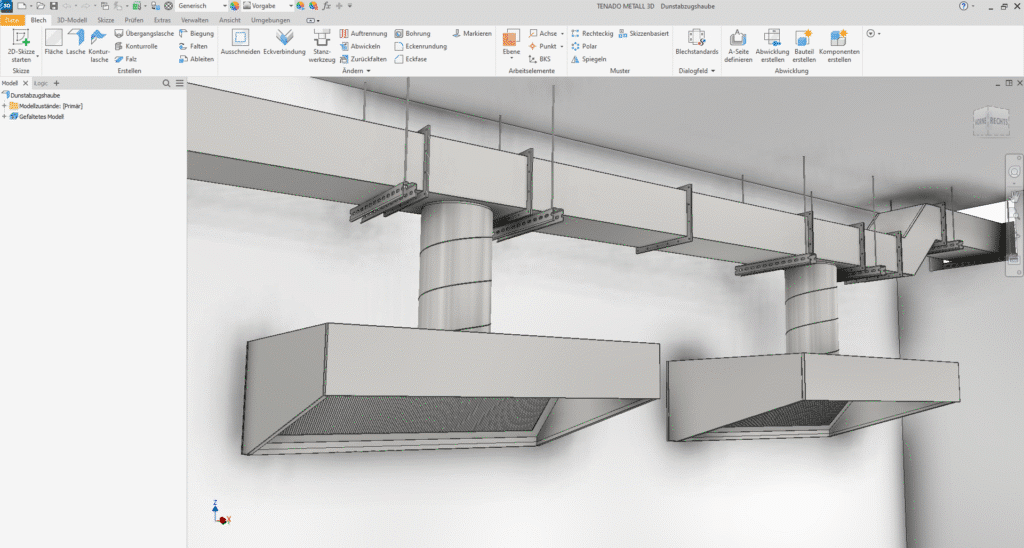

3D CAD model showing an industrial ventilation system with two large hood vents connected to rectangular ductwork mounted on a ceiling.

Your insight into the new TENADO METALL 3D

Get to know the new TENADO METALL 3D in our webinar! Our product experts will introduce you to the impressive new features of our software and show you which features will impress you and simplify your everyday work.
Register now
Badge-shaped graphic announcing a kick-off webinar for the new TENADO METALL 3D, featuring blue and gray text on a white background.

Your tools for efficient work

Rod function
Create bars at or between points and along paths. Use standard or custom profiles. Trim, butt, miter, or face.  
Anchor plates
Use your universal connecting element on points and rods. Drill holes, even at irregular intervals, with a center hole, as a double anchor plate, and with a chamfered top edge.  
Industrial stairs
Construct single-flight industrial staircases and add landings. Choose between U-, L-, or flat-bar stringers, and lengths based on undercut or simple length specifications.  
Gratings
Easily equip your structures with the right gratings. Use our practical generator and remain customized and flexible.  
Evaluation
One for all! Benefit from automatic evaluations: parts lists, bar lists, and cutting lists. A real time saver; even item numbers are automatically assigned and values ​​are summed up.  

Referenzen

We asked beta tester and master metalworker Lukas Brohammer which features he particularly likes in the new TENADO METALL 3D. His answer: “Point clouds and an improved product structure. And I expect that this TENADO METALL 3D will allow you to handle larger projects even better.”

Lukas Brohammer

Master metalworker and owner of BroCAD
Man with a beard and glasses wearing a black t-shirt and plaid shirt stands against a textured wall and metal door with a small window.

Training and support

Do you want to work efficiently and make the most of the benefits of TENADO METALL 3D? Participate in one of our online or on-site training courses. Do you need help with your projects? Our German-speaking support team is at your disposal.
Training

System requirements 

To run TENADO METALL 3D, your computer must meet certain minimum requirements. We’ve also compiled some hardware recommendations for you. This will help you get even more out of the features of your TENADO software.  
The operating system: Windows 10 or Windows 11 
Processor: 2.5 GHz or higher
Graphics card: 1 GB GPU with 29 GB/s bandwidth and DirectX compatible
Memory: 16 GB RAM for builds with fewer than 500 parts
Processor: 3.0 GHz or higher
Graphics card: 4 GB GPU with 106 GB/s bandwidth and DirectX compatible
Memory: 32 GB RAM or more  
Logo for TENADO METALL 3D, featuring the tagline Powered with Autodesk Technology and the from revalize branding.
With TENADO METALL 3D you can design with numerous industry-relevant tools and functions.
