How to Draw Professionally!​

With TENADO METALL 2D you are already working with the design on the PC with materials that are automatically listed in parts and sawing lists. You can create offers faster and more professionally than your customer would ever dream of. You enter the most important data and TENADO METALL 2D draws for you.

This Makes Your Daily Work Easier

Evaluate Automatically

Clear, simple and fast: The automatic evaluation calculates and saves you a lot of work, for example when ordering. TENADO METALL 2D lists installed objects for you. Number, length and cutting angle of bars are directly there. The total weight and surface area of ​​your construction are also already calculated. The item numbers of the list can also be found on the drawing. Everything comes together easily and in record time.

Without Interruptions

If you have opened a file, the same file can now still be opened. You do not have to make any additional arrangements and can work independently.

Sharing is Fun

Individual bars can now be easily divided. Simply define the number and spacing of the new bars.

That Connects

Cove connections are z. B. used for hall constructions and are now integrated in the "Connections" function.

Generators

The Matching ADD ON: TENADO STAIRS

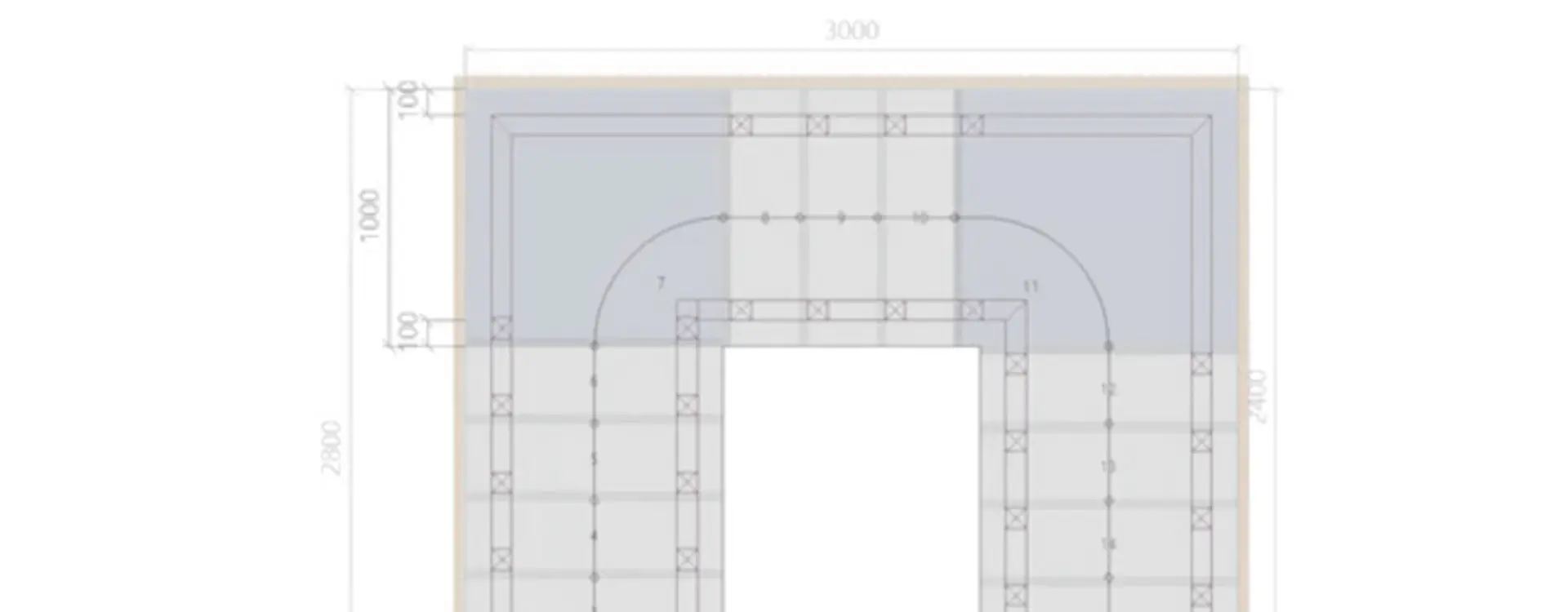

No matter whether straight or warped, quarter or half spiral, with attached steps or side stringers: Create stairs in just a few steps. Simply select type and material, enter dimensions, done! Or you enter floor height and number of steps, TENADO TREPPE calculates the rise and length of the staircase for you. From stairs with stringer constructions or lateral sheet metal stringers to profile stringers that comply with DIN EN 10 058 and 10279 – the stair construction software creates everything for you automatically. Fast, clear, up-to-date.

Photo Visualization

That’s ingenious: your customer sees the finished work on the spot, even before a piece of metal has been processed in your workshop. Simply take a photo of the object, insert it into TENADO METALL 2D and add the sketch of the planned work. The customer can already see what he is getting and the order is as good as certain for you.

The Perfect Interplay of 2D and 3D

You can export bar and surface material from TENADO METALL 2D and easily import it into TENADO METALL 3D. All information such as miter cuts, material type and bar thickness are also transferred – of course also the information you have defined yourself. For example, if you have created your own aluminum profile in 2D, it will also be available in TENADO METALL 3D after the export.
